在YouTube上看到一款奇特的飞行器,它的动力来自于一个竖着安装的涵道电机,气流向下喷出。飞行器的方向由3个舵机控制,用于控制气流方向,实现姿态控制。

这个飞行器构造有趣,原理奇特,很有意思,特此记录。

这款飞行器的作者为,MonoPhan Val Leon,它的测试视频如下

eBay上的售卖地址:MICRO EDF THRUST VECT DRONE MONOPHAN INAV ELRS FPV CAM 25MW VTX PROTOTYPE RTF

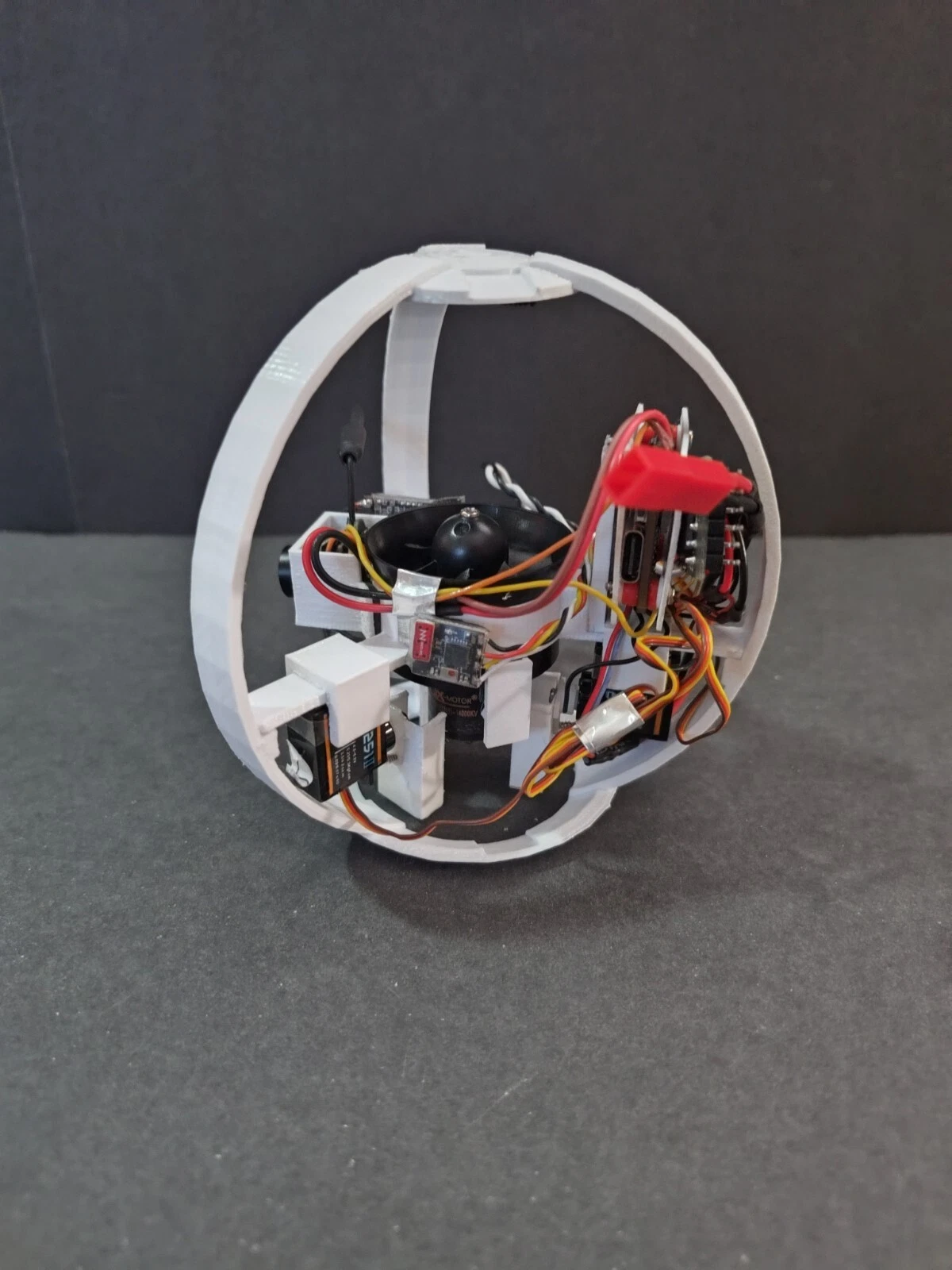

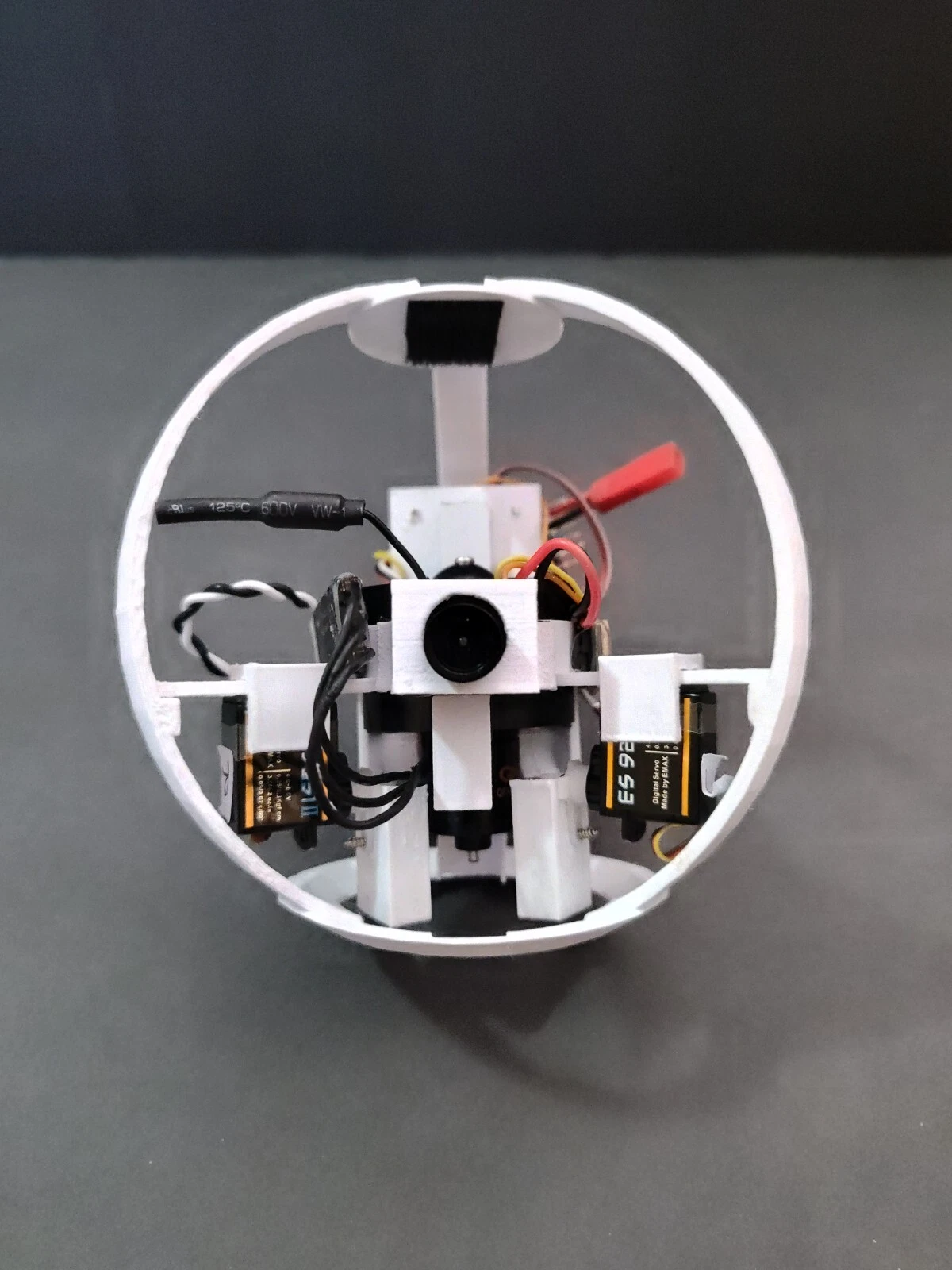

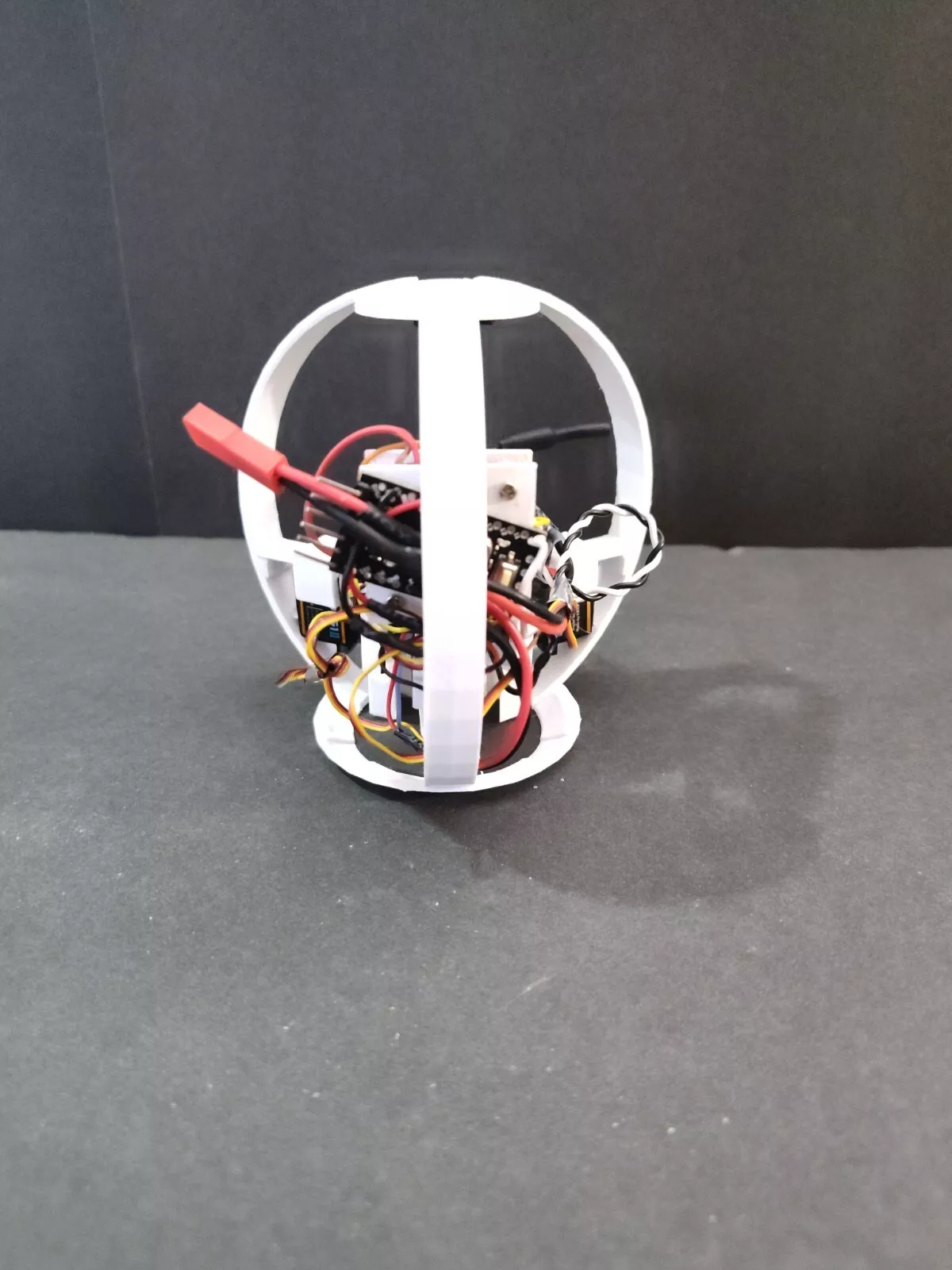

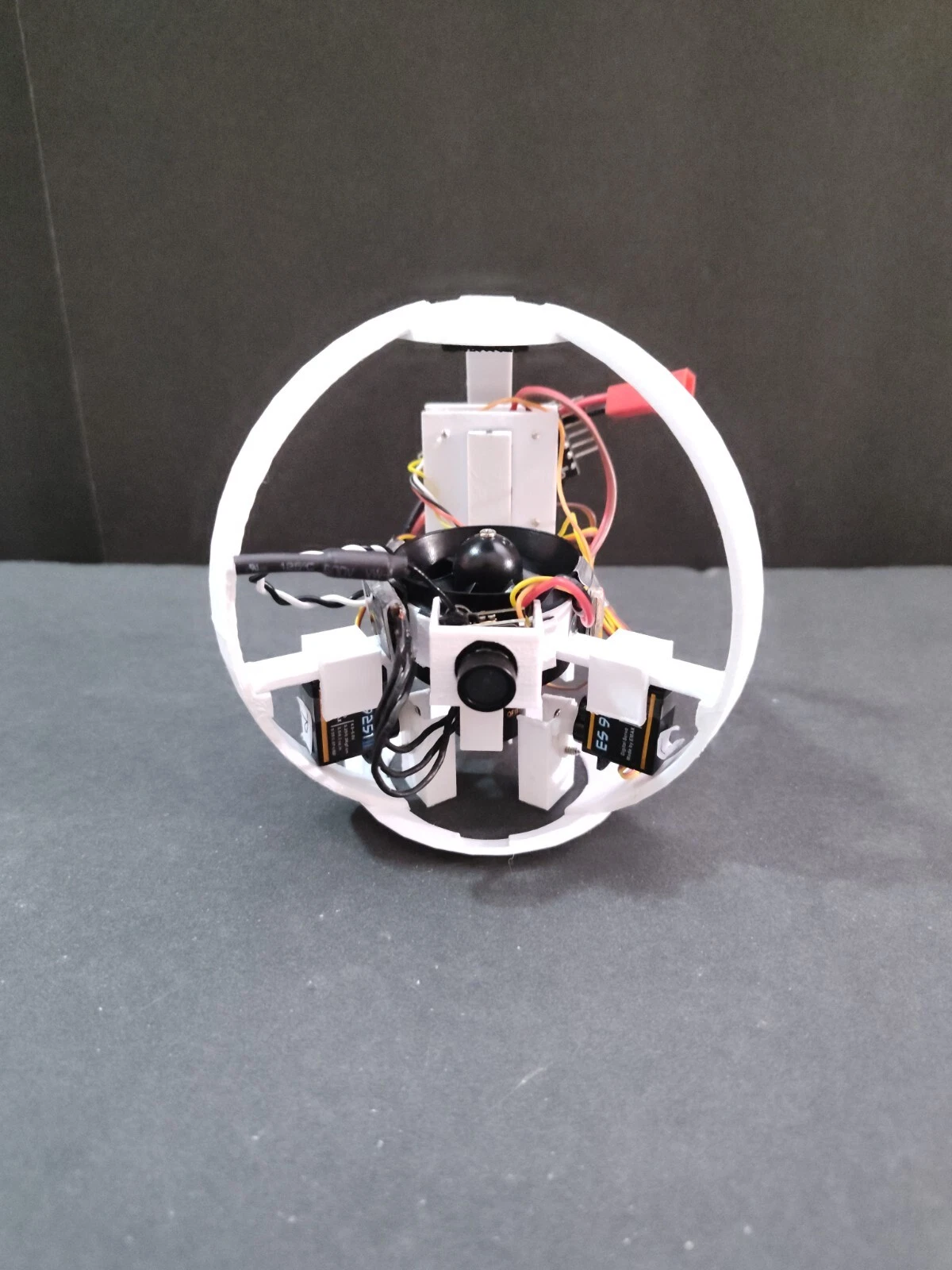

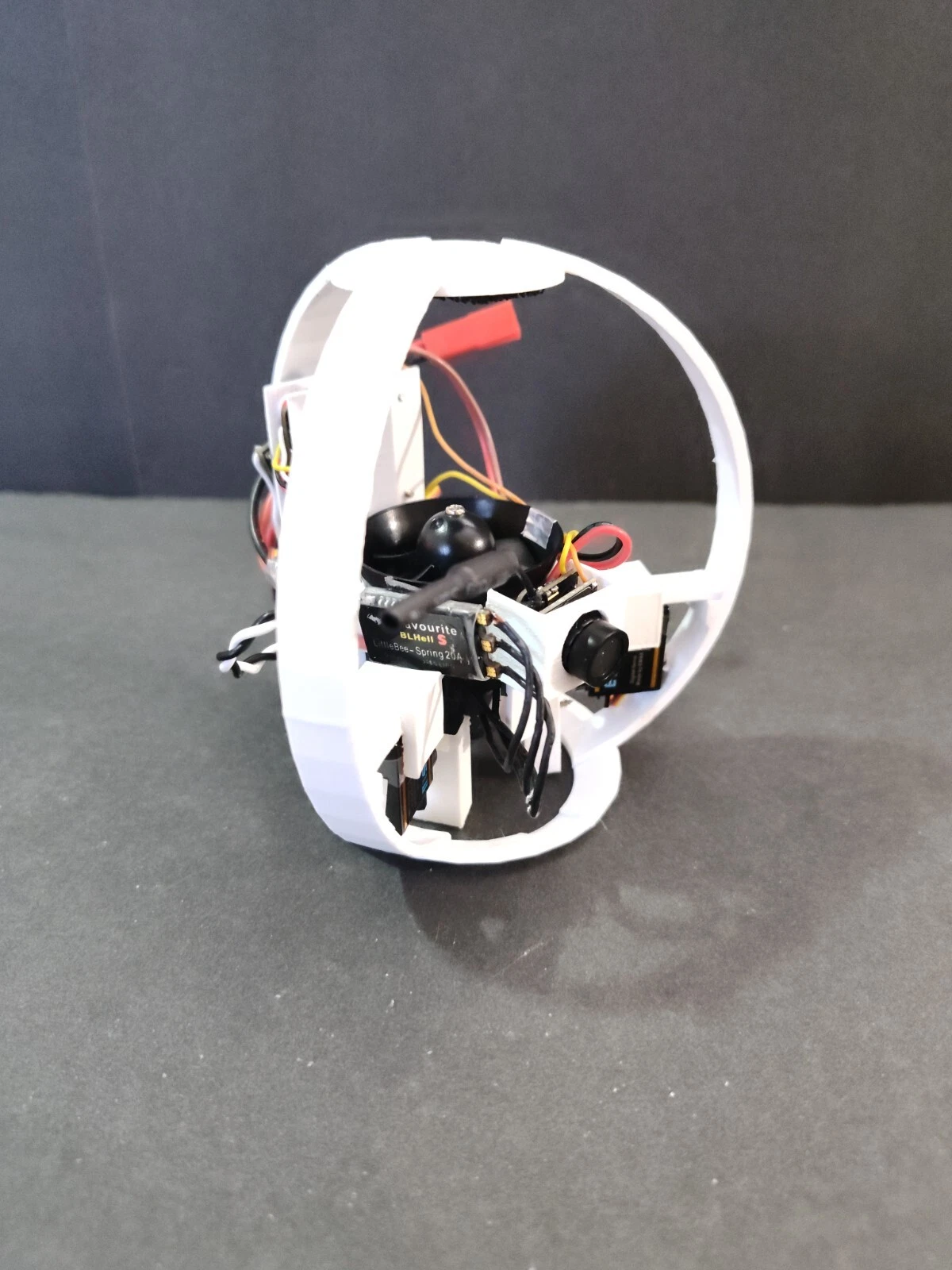

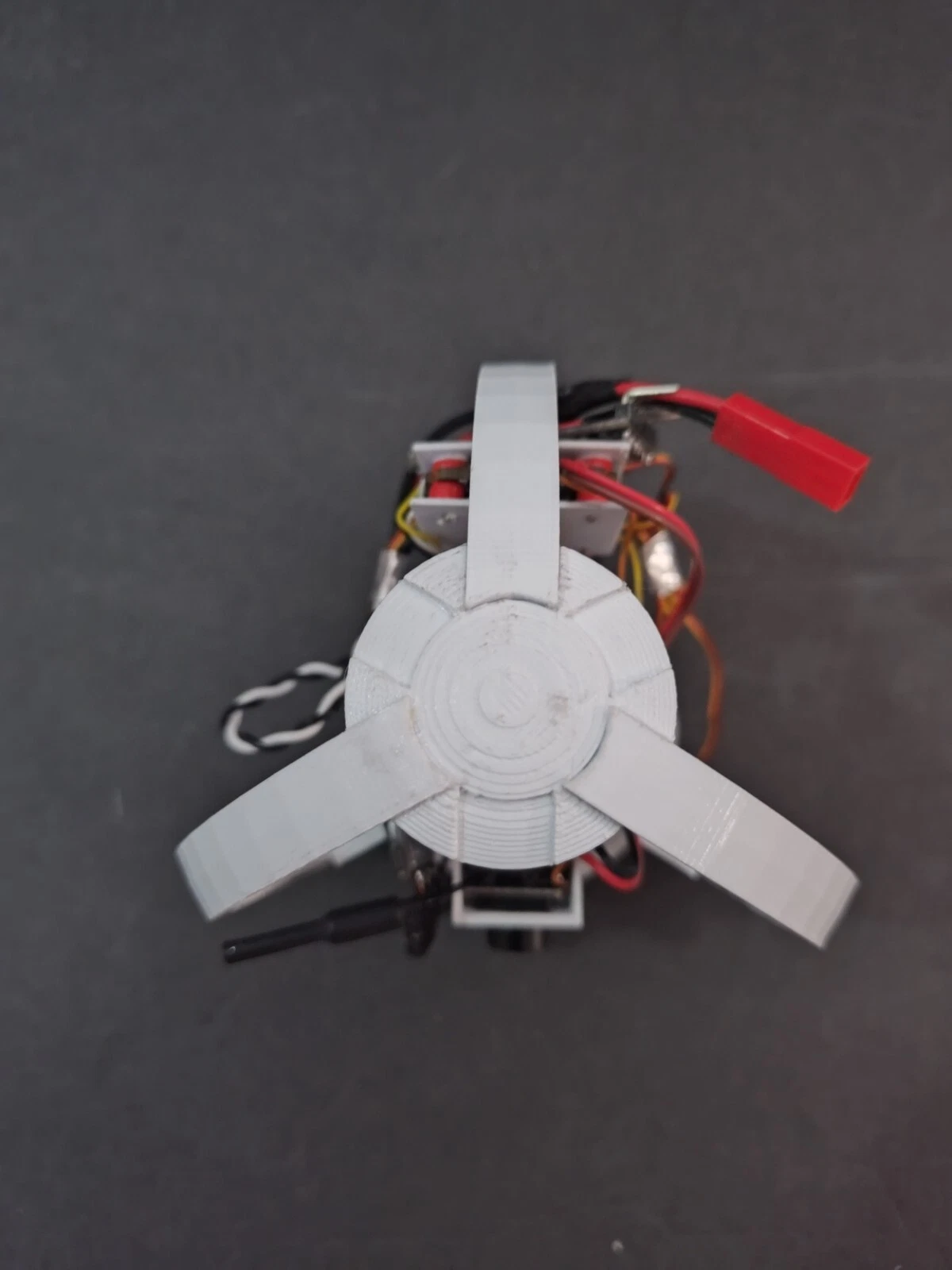

静态展示图(来自eBay的页面)

本段来自eBay:MICRO EDF THRUST VECT DRONE MONOPHAN INAV ELRS FPV CAM 25MW VTX PROTOTYPE RTF

THE COOLEST INDOORS GIG THAT YOU WILL EVER OWN!!!

DIRECT FROM THE INVENTOR, ONE OF A KIND SCIFI DESIGN!

RESULT OF MONTHS OF DESIGNING AND TESTING COMBNED WITH MORE THAN A DECADE OF MONOPHAN THRUST VECTORING EXPERIENCE.

MONOPHAN THRUST VECTORING SYSTEM…

3D PRINTED FROM PETG FOR HIGHER STRUCTUTAL STRENGTH!

TEST FLIGHT VIDEO:

https://www.youtube.com/watch?v=A2pMR3RQOSY

https://youtu.be/Tt3NHmxecQ8?feature=shared

I USUALLY SHIP THE NEXT DAY IF NOT THE SAME DAY!!!

PROTOTYPE:

– QF MOTOR 30MM EDF

– SPLIT NOZZLE MONOPHAN THRUST VECTORING SYSTEM WITH EMAX DIGITAL SERVOS

– JHEMCU NOXE FLIGHT CONTROLLER WITH INAV

– FPV CAM WITH 25MW VTX

– 3D PRINTED PETG BODY

– BETAFPV ELRS RECEIVER

– RTF WITH ELRS POCKET TX

– USED LIPO THAT I TESTED WITH WILL BE SHIPPED WITH THE UNIT

– FLIGHT TIME IS 2-3 MINUTES

– WHAT YOU SEE IN PICS IS WHAT YOU GET

THIS IS NOT A CONVENTIONAL DRONE AND FLYING IT MAY NOT BE AS EASY AS ONE. PURCHASE AND FLY IT AT YOUR OWN RISK.

THANK YOU!
